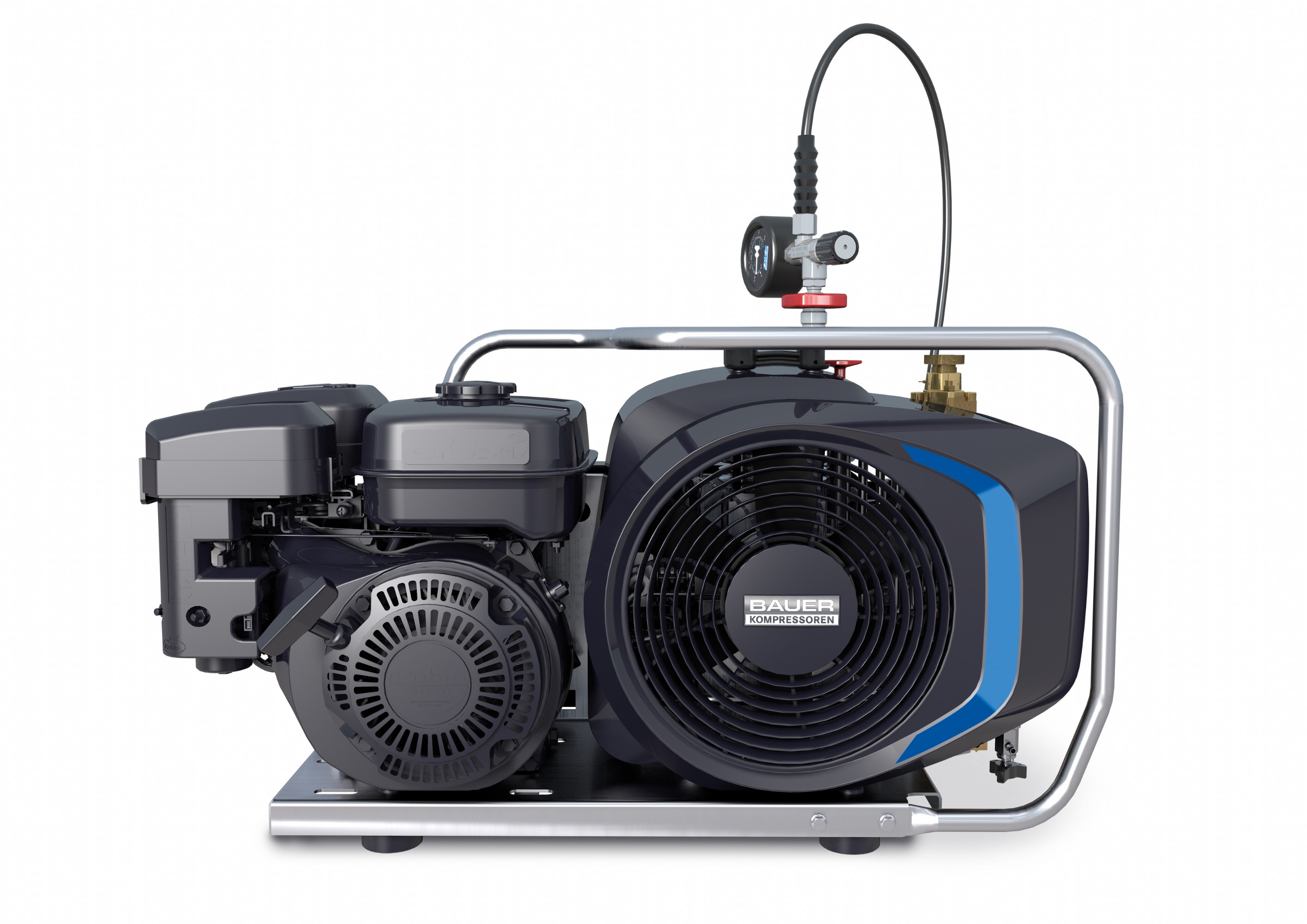

The OCEANUS impresses with its excellent performance data: despite being almost identical in size, it can fill a breathing air cylinder up to 40% faster than the JUNIOR II. Designed for challenging professional applications, it impresses with its durability, mobility and high free air delivery.
Thanks to the corrosion-resistant base frame made from stainless steel, the OCEANUS is the ideal compressor even for tropical climates. It is used on ships, submersibles and expeditions, and is also suitable for use as a paintball compressor, sport shooting compressor or mobile fire service compressor.
A generous oil reserve in the crankcase and the powerful oil pump mean that operation is also possible even at very oblique angles up to 30° (up to 20° in the petrol version).
This quiet and compact unit can be carried easily by a single person and will fit in almost any car boot.
The integrated low-pressure lubrication with slow running gear pump increases the service life of all moving parts of the compressor block.
When used in conjunction with original BAUER filter cartridges, the P 21 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 140 m³ of air can be treated.
The operating hours and the current level of cartridge saturation are displayed on the unique B-TIMER mini-computer. The B-TIMER flashes when a cartridge change is due. At the same time, the purchase order of the filter cartridge required is shown on the display. This ensures that the very best use is made of the filter’s capacity at all times.
The filling device comprises a flexible “UNIMAM” high-pressure filling hose and filling valve complete with final pressure gauge. The final pressure gauge makes it easy to read off the filling pressure. It is protected against damage by a durable rubber jacket.
High-quality UNIMAM high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.
The stainless steel design provides the best possible protection against corrosion for applications in tropical regions or at sea.
The well-known GS mark which comes as standard with the JUNIOR II certifies that the compressor has been tested for safety and meets the exacting requirements of the German Equipment and Product Safety Act. Conformity and compliance with all DIN standards is assured.
Below is a selection of equipment options for the OCEANUS compressor

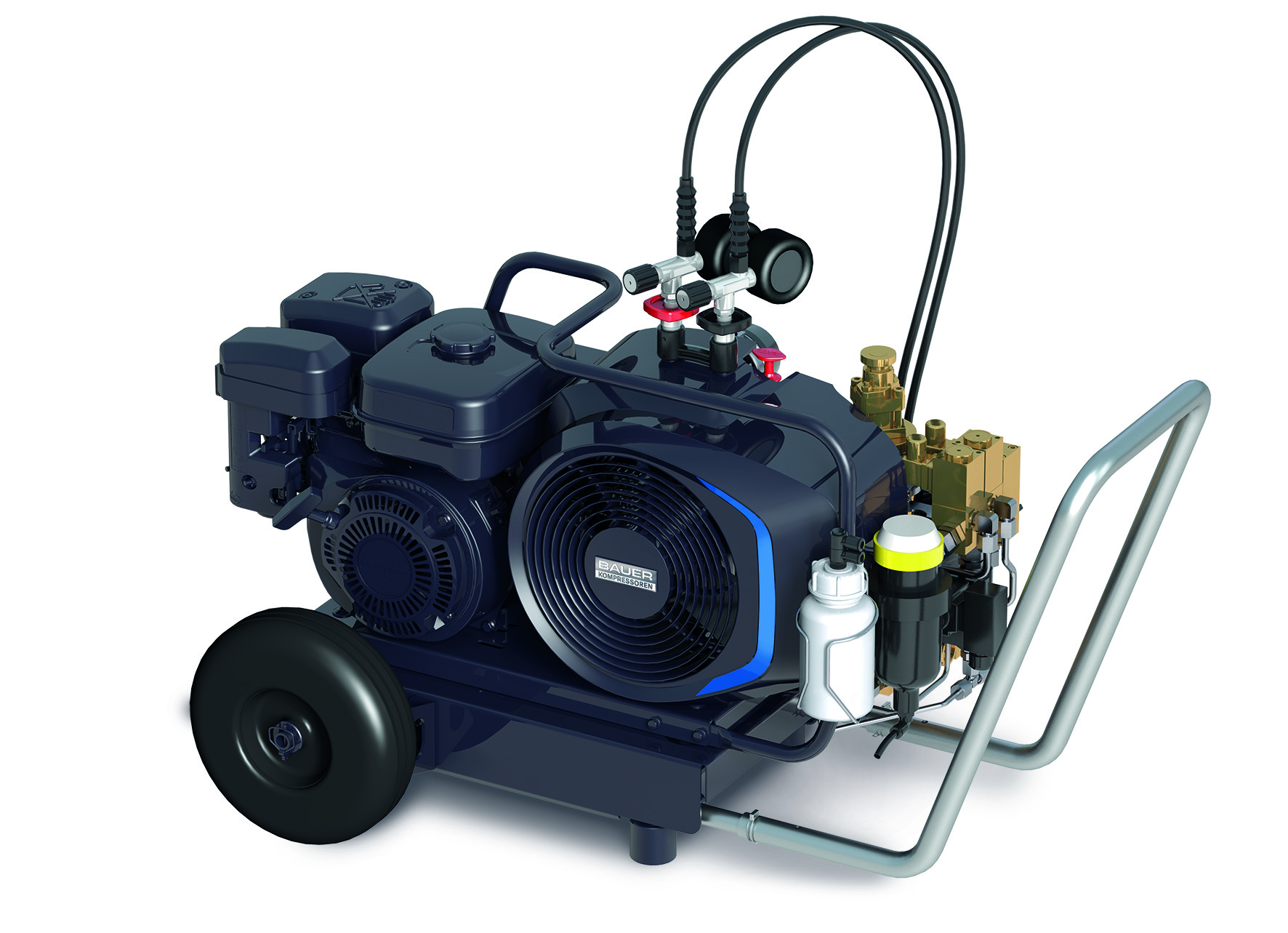

The trolley for the COMPACT-LINE units is designed for the simple and safe transportation of your compressor across any terrain. This is ensured by the large pneumatic tyres and the stable manner in which the compressor is secured. For maximum flexibility, you can either leave the compressor on the trolley or lift it down to operate it. Turning a handle on the trolley allows you to secure your JUNIOR or OCEANUS in place and lift it back down again. The length of the handle can also be adjusted to make handling the trolley particularly easy.

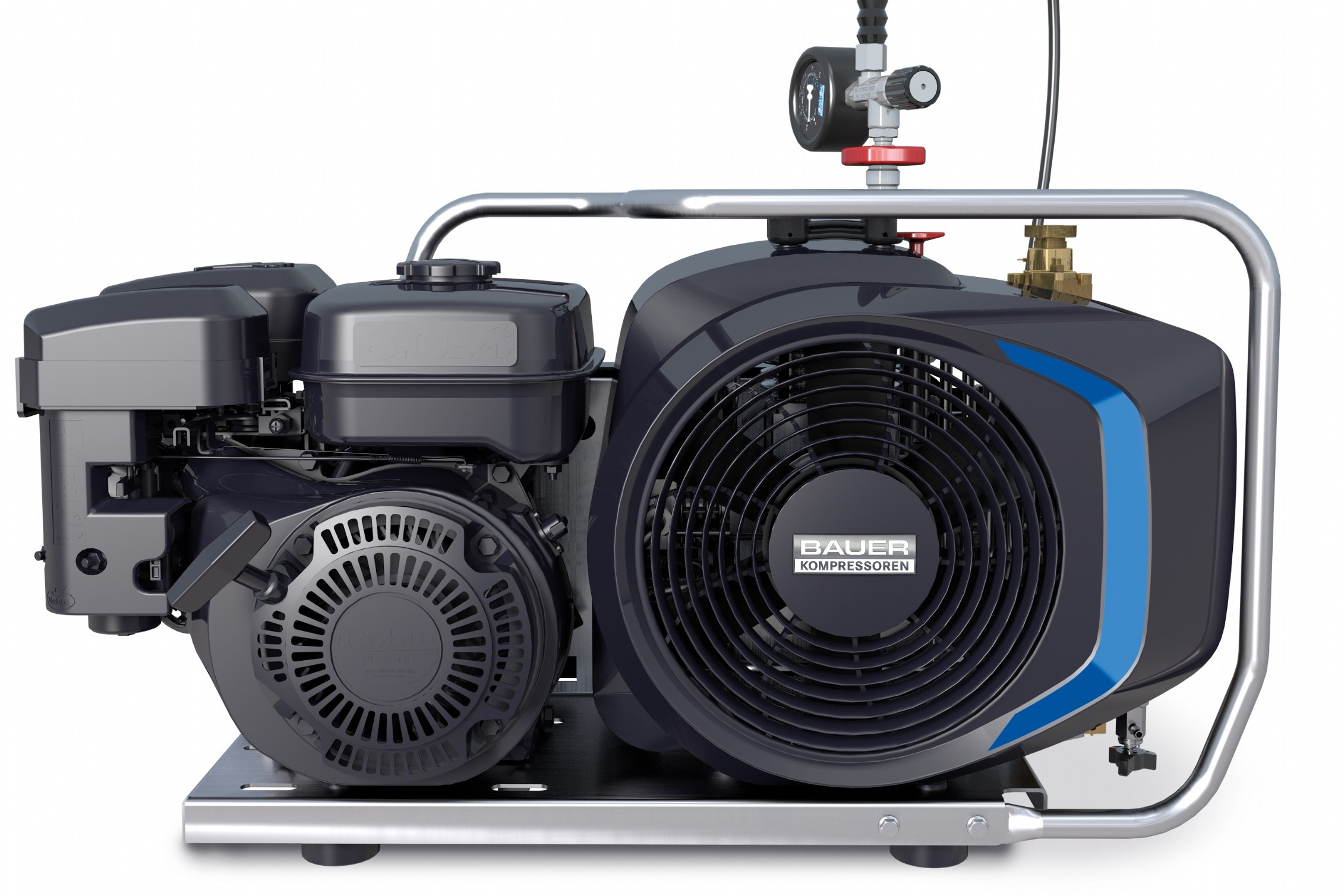

The automatic condensate drain removes water from the intermediate separator and the final separator automatically during both operation and shutdown. This makes things infinitely more convenient for the operator, as there is no longer any need for the time-consuming process of draining condensate manually at regular intervals. Another benefit is that the compressor is switched off automatically when the final pressure is reached.
The optional equipment for easy switching between 200 and 300 bar. The switch-over device enables breathing air cylinders to be filled with both 200 bar and 300 bar. For optimum limiting of the maximum operating pressure, each of the two pressure ranges is protected with a type-tested final pressure safety valve. High-quality high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.
There is the option to supplement an existing filling valve with the addition of one or more filling valves with filling hoses of varying lengths.
All electric motors are available with other voltages and frequencies on request. A voltage range from 110 to 690 V at 50/60 Hz is covered.
