Fire & Rescue

POSEIDON EDITION PE-100

100 l/min.

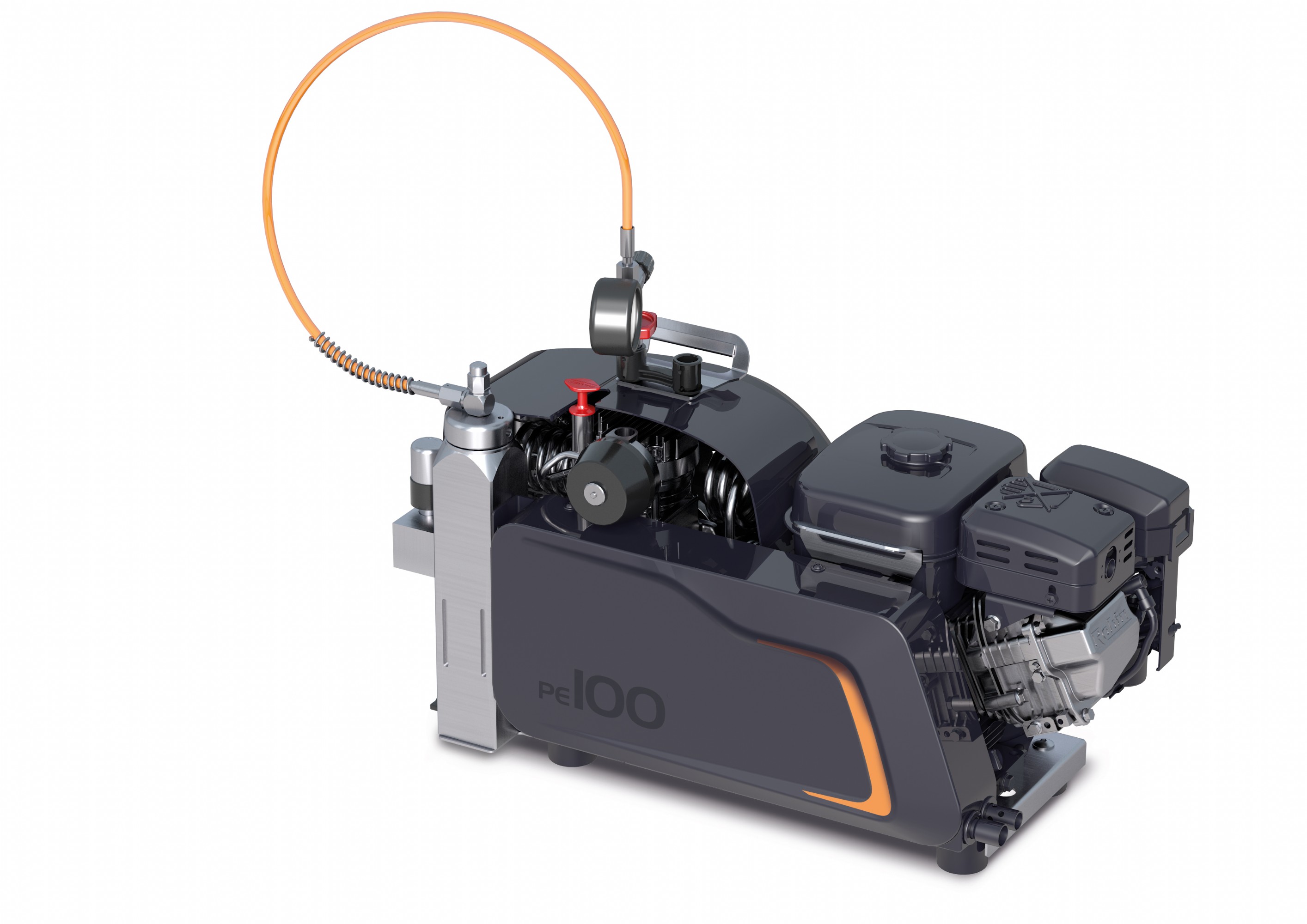

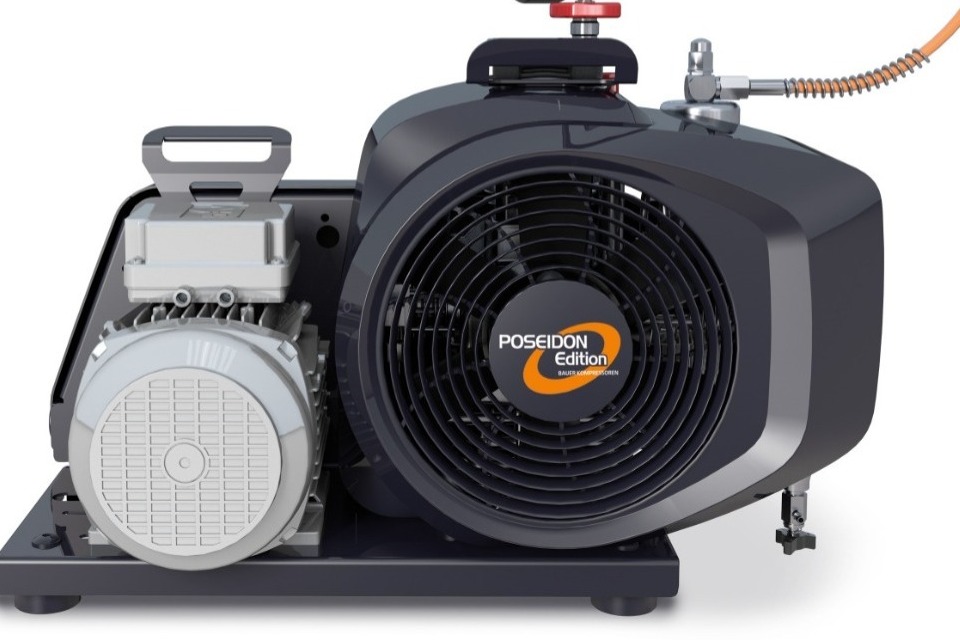

The PE 100 is by far the smallest and lightest unit in the PE series.

Its possible uses are virtually unlimited: with three drive options (petrol, three-phase current and alternating current), it is suitable for use in all manner of different applications on land or in vehicles.

Ideal as a breathing air compressor for groups of divers and fire crews or for the rapid filling of cartridges for sport shooting and paintball.

In the petrol version it is even capable of operation in the most remote of locations without a power supply. With an AC drive, it is even suitable for connection to a standard domestic power supply.

This lightweight and compact unit is easy to transport and will fit in almost any car boot.

Dimensions on a very small scale and sophisticated technology make our most compact mobile breathing air compressor ideal for shipping, as a diving compressor, in respiratory applications, and as a compressor for paintball and sport shooting. With a special sport shooting version available as well, the PE 100 also replaces the smaller S 30 shooting compressor.

ller på åbent hav.

.
Product information

PE 100 compressor block

The high-pressure compressor block is the “beating heart” of the PE 100 compressor. Epitomising reliability and having proven its worth in practice for decades, more than 100,000 units have been sold the world over. Plateau-honed cylinders and a perfect fit cooling system enable the compressor block to be used in a wide variety of application ranges. The easily accessible oil filler neck makes oil changes easy. An oil dipstick is provided so that the oil level can be checked. Long oil change intervals and wear-resistant piston rings reduce running costs to an absolute minimum.

P 11 filter system

When used in conjunction with original BAUER filter cartridges, the P 11 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 140 m³ of air can be treated.

1¹ If the units are maintained and installed correctly as described in the operating instructions or user manual and if the concentration of CO2 in the intake air does not exceed the values specified in the applicable standard for breathing air.

Filling device

Fyldehåndtaget er komplet med et sluttryksmanometer. Manometeret gør det nemt at følge fyldetrykket til enhver tid, og er beskyttet af en slidstærk gummikappe.

Filling hose

High-quality UNIMAM high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.

Specifications

Data

Liter per minute: 100

Motor: 2.2 –  4.2kw

Net weight: 42 – 44kg

Download datasheet

Accessories

Below is a selection of equipment options for the PE-100 compressor.

Motor circuit-breakers for PE 100-TE

Motor circuit-breakers with connecting cable and CEE plug connector.

Other voltages/frequencies

All electric motors are available with other voltages and frequencies on request. A voltage range from 110 to 690 V at 50/60 Hz is covered.
